| Model |
Function |
| 58ZS-D4 |
4-20mA (series connection, Plug-in) |
| 58ZS-D3 |
24VDC/4-20mA (series connection, 3-wire plug-in) |
| 58ZS-TC |
TC signal (series connection, Plug-in) |
| 58ZS-TR |
RTD signal (series connection, Plug-in) |
| 58ZD-D1 |
On-off signal (series connection, Plug-in) |
| 58ZD-D8 |
On-off signal (series connection, multichannel) |
| 58ZD-LF |
Pulse/Frequency signal (series connection, Plug-in) |
| 58ZS-SG |
Strain gauge signal (series connection, Plug-in) |
|
|

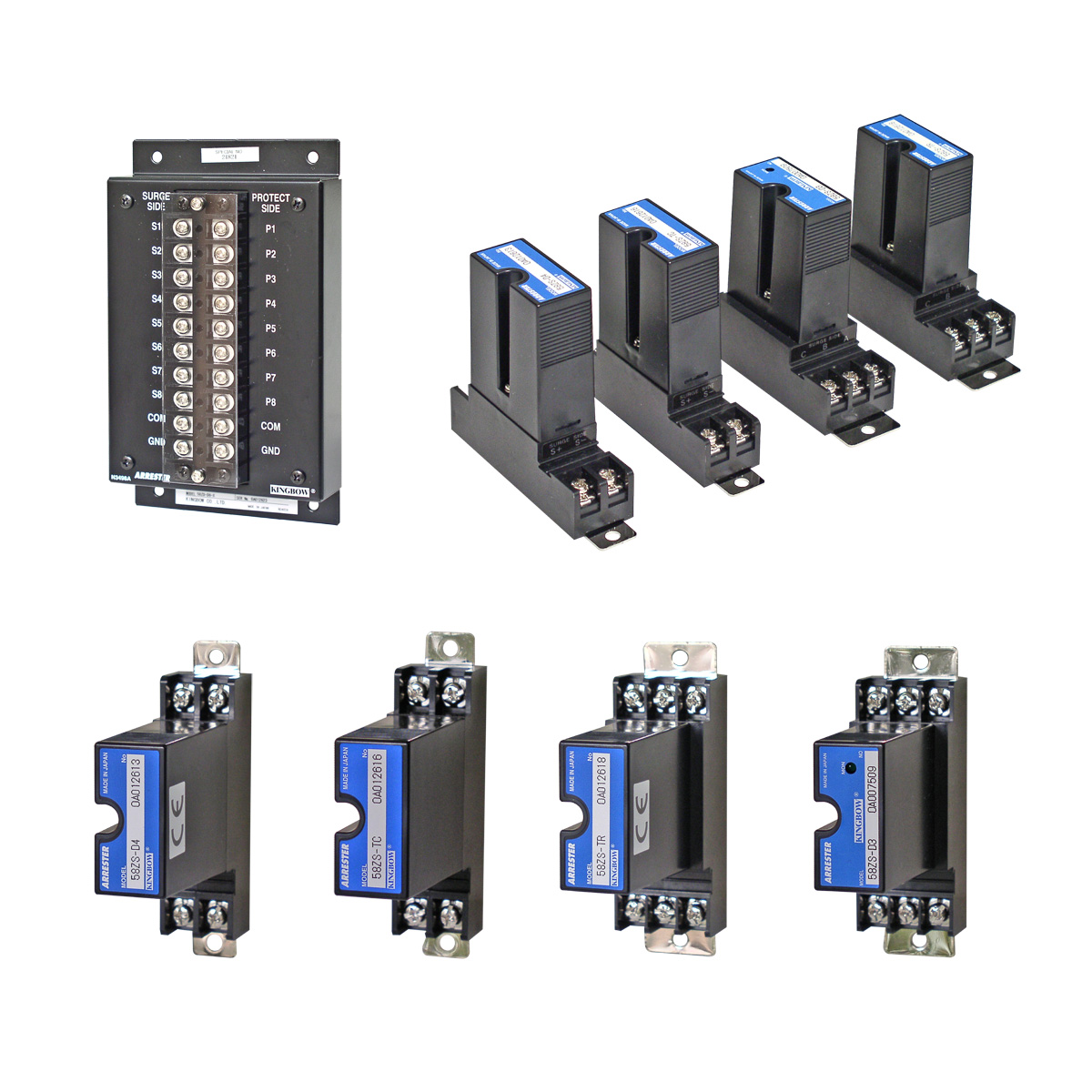

| Products |
58Z Series |
Type |
For standard signal line and Pulse use:
4-20mA
RTD
T/C
On/off level
Low frequency pulse
Potentiometer
|
| Power supply |
See detail spec. data sheet |
| Discharge current capacity |
10kA |
| Remains Voltage |
See detail spec. data sheet |
| Response time |
Between lines:
¡Ü
2ns
Line to ground:
¡Ü
10ns
See detail spec. data sheet |
| Leakage Current |
See detail spec. data sheet |
| Construction |
Connected in series |
| Housing material |
Flame-resistant resin |
| Operating data |
Temperature:-10- +55
¡æ
Humidity: 30- 90%RH |
| Display |
- |
| Resistance connect to ground |
¡Ü 10¦¸ |
| Connection |
M4 screw terminals |
| Approvals |
CE
UL |
| Mounting |
Backplane |
| Dimensions |
See detail spec. data sheet |
| Weight |
See detail spec. data sheet |
|
|
